First Avenue in new york has to position among the busiest city streets in the world. It's a concrete roadway that covers five lanes large; traffic works one method to the north. The avenue holds traveler cars, taxis, buses and vehicles that total in to the thousands each and every day. Over the years, very first Avenue into the town’s Upper East Side had become polished, cracked, spalled, faulted and patched with asphalt in various locations.

And so the town made a decision to rehabilitate 52 obstructs of the roadway, in a blended effort between the Department of Design and Construction (DDC) while the division of transport (DOT). Many cost-effective answer, the town determined, was to mill along the cement to level it and overlay the area with a unique polymerized asphalt.

Challenges of Milling Concrete

Milling cement is not uncommon, but it’s additionally challenging. When through with a frequent asphalt milling drum, the milling device slows to a crawl. Production is hard and tiresome.

To boost milling manufacturing and produce a finely-textured surface on concrete, the city’s specialist, Carlo Lizza & Sons Paving Inc., elected to micromill the concrete with a Roadtec RX-900e milling device fitted with a particular 400-tooth path Runner good Milling mind. By comparison, a typical asphalt milling drum recently 180 teeth, says Jeff Rule Sr., cutter drum manager for Roadtec.

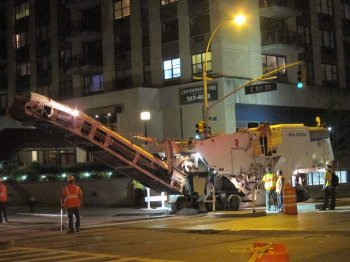

Operating at night, the milling device could mill along, going about an inch deep, at 35 to 40 fpm, claims Rule.

“With this kind of drum, we're able to increase the surface rate, while increasing their particular enamel life, ” says Rule. “We were there for two evenings, plus in two evenings they just changed maybe a dozen teeth. Therefore the surface they got was stunning. It Had Been finely textured, and enabled all of them to get a good bond with all the asphalt overlay.”

Tim Penza, project coordinator for Carlo Lizza & Sons, describes it in this manner: “The unique drum offered us the capability to account the cement. We cut 8 feet wide with one pass. We went from 25 % inch-deep at top to 1.5 ins on curb. We cut 70 foot wide by 52 obstructs, which will be about 14 lane kilometers. The project stretched from 72nd Street to 125th Street on First Avenue.

“We micromilled, after that we blew out and sealed the splits with patching product, ” continues Penza. “Then we put-down 100per cent fluid asphalt tack layer and then a fiberglass material. The DOT paved the overlay above the fiberglass textile; the overlay ended up being 1.5 to 2 inches thick.”

Creating a Finer Finish

Aly Lizza Jr., mind of Lizza’s new york Division, claims: “Micromilling gives you a much finer finish. The final is quite fine and uniformly grooved. It produces a completely different finish than you can get by milling asphalt with a regular asphalt drum.”

The specialist closed 1 / 2 of very first Avenue at a time, for a nightly working distance. “Our traffic habits varied, depending on the arterial streets entering First Avenue, ” claims Penza. “We needed to square up every night, so we performed some areas from curb to suppress every night.”

Aly Lizza Jr. claims he appreciates the work the milling machine did.

“We actually utilized the hell out-of that drum in the concrete, ” he states. “It organized great however. Every little thing ended up being brand new about this project. Milling cement ended up being brand new, the material was brand-new, as well as the asphalt mix had been brand new.”

Meanwhile, a Roadtec RX-100e utility milling machine was always mill around manhole covers along with other obstructions.

Eric Brown, deputy manager of Roadway Paving for the New york Division, nyc DOT, stated the city offset the joints inside asphalt from the initial bones when you look at the cement. Anytime the cement panels had been on 12-foot facilities, the DOT set the asphalt paver at 14 feet large. That measure aids in preventing reflective cracking.

Brown stated the micromilling enabled the asphalt overlay “to get a far better bite at first glance of the cement. It assisted us develop a much better relationship.”
