Pavement roads

Michigan is a nationwide leader in roadway building; the state boasts the country's very first mile of rural concrete highway and several other landmark "firsts."

STAGE I: Planning

MDOT collects and preserves a huge amount of information about our roadways, including:

Applying this data, transportation planners, designers, environmentalists, landscape architects, earth researchers and others identify trends that figure out what and just how to construct. Various other items to consider:

• Can MDOT get the residential property to create in?
• Which are the ecological issues?
• What resources should be affected by a task?
• Exactly how will we fund the project?
• How can this project be made to be a valuable asset towards the community?

Money for road projects originates from gas fees. Michigan motorists spend 19 cents per gallon in condition fees and 18.4 dollars per gallon in federal gas income tax. The taxation on diesel gasoline is 15 dollars per gallon. The national share of gas taxes is passed toward authorities, which directs it through numerous programs. Until recently, Michigan obtained just 90.5 cents for each and every buck in gasoline fees sent to Washington. Brand new legislation will increase Michigan's return from 90.5 cents to 92 cents regarding the buck between 2005 and 2009.

PHASE II: Design:

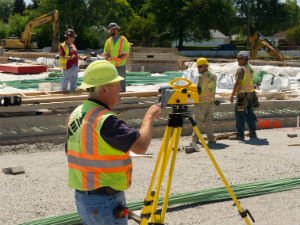

A survey of this location is second step. Recently, Global Positioning techniques, laser studies, alongside technology have actually hasten the method and enhanced reliability. Many aspects impact designs, including:

• area,
• surface and soil properties,
• drainage capabilities,
• traffic volume,
• the proportion of automobiles to trucks and buses,
• feasible future development in the area,
• results on environment or nearby residents.

With a design available, MDOT advertises for a specialist doing the specific building. MDOT prizes agreements considering low quote price.

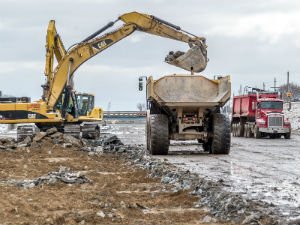

PHASE III: Earthwork

With a specialist onboard, earthwork can start. Earthwork the most crucial elements in roadway construction as it establishes a stable foundation. A roadway with a substandard foundation will fail prematurely. That is the reason the road's base levels tend to be as essential once the finished area.

• Very first, the specialist builds embankments using slices and fills.
• Next, a grader or bulldozer amounts the screened soil. Leveling bumps and completing dips produces a surface that help a road for a long time.
• The screened soil is dispersed with liquid and compacted to its maximum density.
• In this phase, the contactor installs drains and sewers. The middle of the street must be more than the edges so water will run off in to the storm sewers. Drainage is a critical factor because incorrect drainage will help reduce this new pavement's life span.
• This work must pass strict assessments ahead of the task can continue.
• To accomplish the earthwork, the contractor locations gravel in 12-inch layers on your way bed. Workers moisten and compact each layer. Layers are added and compacted before roadway bed hits the height needed in the design.

PHASE IV: Paving

At last, the road bed is prepared for paving. If expected paving expense is more than million, condition legislation needs MDOT to carry out a life period cost analysis. In this evaluation, planners and designers research:

• extent and style of traffic,
• the price of paving material.

A formula that features these factors informs MDOT engineers to use either asphalt (bituminous) or tangible pavement.

• Asphalt utilizes bitumen, a petroleum product, to glue together sand and crushed stone. This combination is heated to roughly 300 levels on asphalt plant. At the building site, employees spread and compact the hot blend onto the roadbed.
• Concrete utilizes concrete and liquid because the glue between sand and crushed stone. Employees place tangible into metal molds called kinds.
  a finishing machine vibrates and trims it toward necessary level. To prevent splits, employees cut bones amongst the concrete slabs. At each and every joint, cable baskets and steel dowels link the pieces. These let the slabs to grow and contract whilst the temperature changes. The slabs can slide from side to side across the dowels, yet not up and down.

Modern paving gear can insert dowels while the cement is poured, then straight away tine the cement.
